2,100

Maximum Range

441

Max Cruise Speed

12

Max Passengers

3,560

Takeoff Field Length

Corporate Game Changer

Introducing the boundary-breaking CITATION XLS Gen2 jet. Technological precision and thoughtful design meet in an intuitive aircraft engineered for exceptional journeys. Inspired by you. Your passion. Your mission. Your vision.

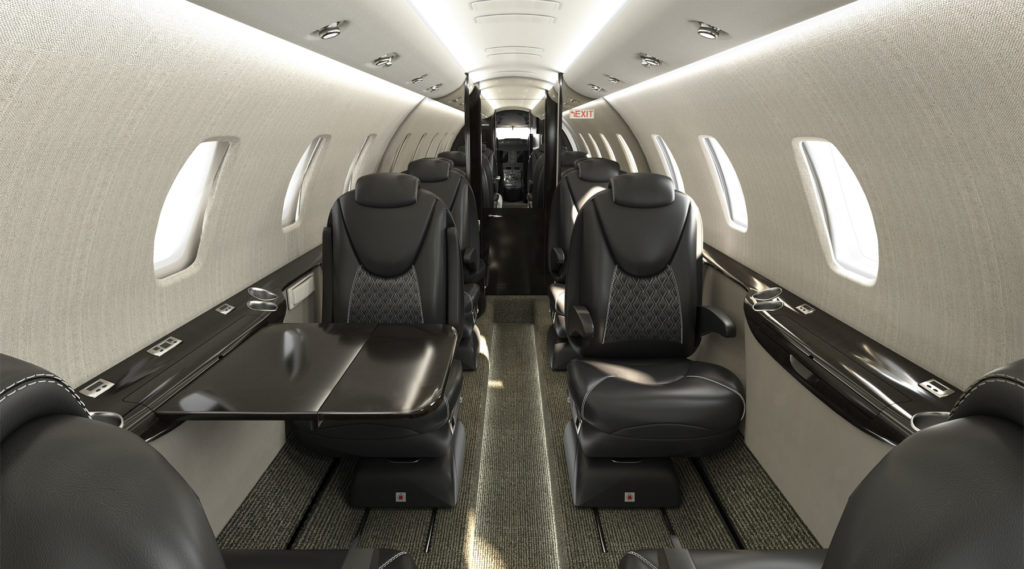

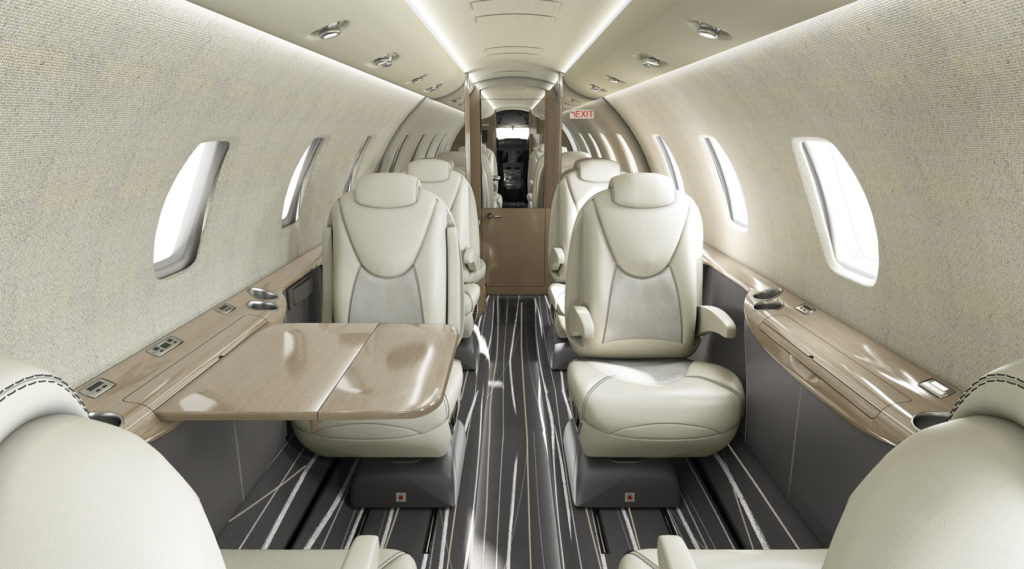

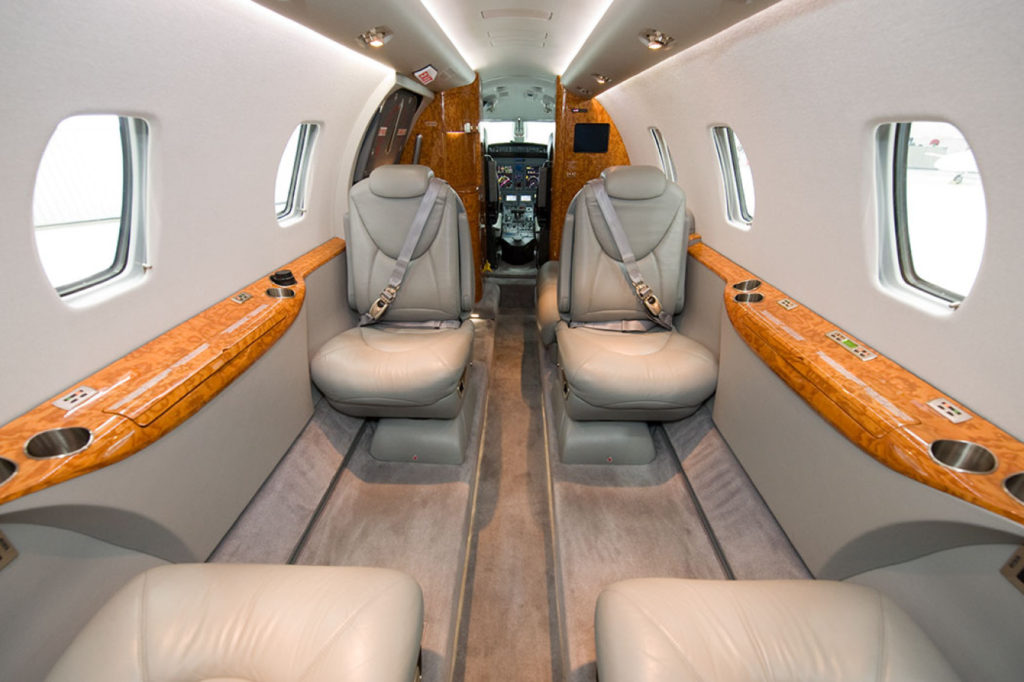

The XLS Gen2 jet’s first-class cabin is redesigned for superior comfort and greater productivity. New ergonomically designed leather seats. Enhanced lighting that sets the tone for business or relaxation. And updated cabin technology, such as first-in-class wireless smartphone charging and the Clairity cabin management system, put you in charge from the comfort of your seat. In the flight deck, COLLINS AEROSPACE PRO LINE 21 avionics deliver NextGen performance.

The XLS Gen2 aircraft experience ensures your team arrives rested and prepared for whatever challenges the day brings.

Fresh Air System

This aircraft features a Fresh Air System to keep cabin air clean. This system operates by bringing fresh air from outside into the aircraft through the engines. The engines compress and heat the air killing pathogens and germs. The air is then cooled and enters the cabin as cold or warm air before exiting aft.

Make the Impossible, Possible

The Citation XLS Gen2 outshines competitors

A Citation for Every Mission

Combines performance and payload, never compromise on a mission

Largest Cabin in its Class

The Cessna Citation XLS Gen2 boasts the largest cabin in its class

Storage for the Whole Team

Plentiful closet space throughout the cabin

Total Cabin Comfort

The Cessna Citation XLS Gen2 combines many features for total cabin comfort

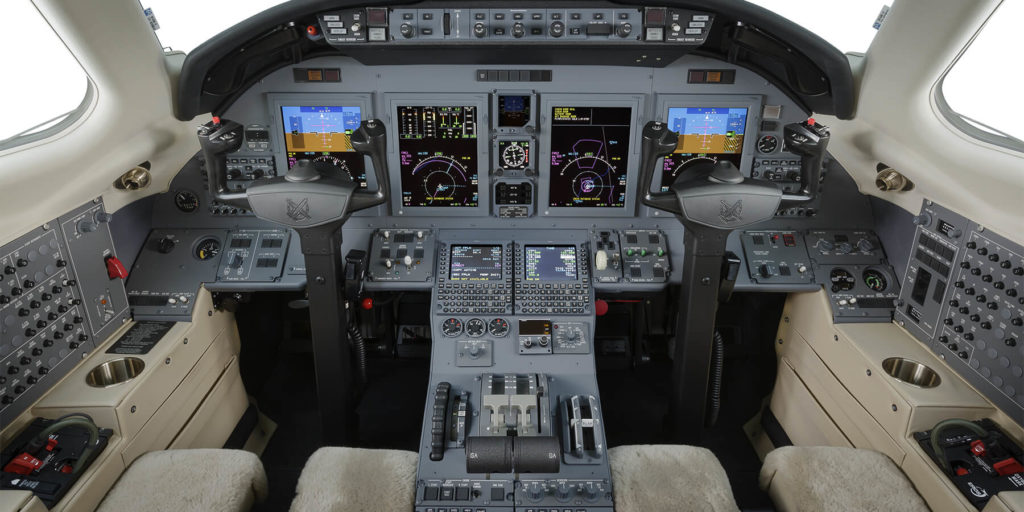

Collins Aerospace Pro Line 21™

The Heart of Your Travel

Simpler controls and brighter displays, all powered by Rockwell Collins Pro Line 21™ avionics, make the Citation XLS Gen2 smarter than ever.

This line of avionics provides weather navigation systems, airport diagrams, detailed flight status data, checklists, diagnostic systems and are directly in the crew’s line of sight. Angled control panels and four tilted eight by ten inch displays show flight information in simple, clear readouts.

Features

  • Dual 8 x 10-inch Primary Flight Displays
  • Dual 8 x 10-inch Multifunction Displays
  • Electronic Flight Information System
  • Crew Alerting System
  • Flight Guidance System
  • Dual Air Data Computers
  • XM Broadcast Weather (U.S.)
  • Emergency Descent Mode
  • Dual Attitude Heading Reference System
  • Integrated Electronic Checklists
  • Electronic Charts
  • Flight Management System
  • Global Positioning System
  • Terrain Awareness Warning System (TAWS)
  • Traffic Collision Avoidance System (TCAS II)
  • Maintenance Diagnostic System

Specifications

Dimensions

Length
52 ft 6 in (16.0 m)
Height
17 ft 2 in (5.2 m)
Wingspan
56 ft 4 in (17.17 m)
Wing Area
370 sq ft (34.35 sq m)
Wing Sweep
0.0 degrees
Wheelbase
21 ft 11 in (6.68 m)

Cabin Interior

Height
68 in (1.7 m)
Width
66 in (1.68 m)
Length
18 ft 6 in (5.6 m)
Maximum Passengers
12

Weights

Maximum Takeoff Weight
20,200 lb (9,163 kg)
Maximum Landing Weight
18,700 lb (8,482 kg)
Full Fuel Payload
800 lb (363 kg)

Baggage Capacity

Weight
800 lb (363 kg)
Volume
90.2 cu ft (2.55 cu m)

Performance

Maximum Cruise Speed
441 ktas (817 km/h)
Maximum Range
2,100 nm (3,889 km)
Takeoff Field Length
3,560 ft (1,085 m)
Landing Distance
3,180 ft (969 m)
Maximum Operating Altitude
45,000 ft (13,716 m)
Maximum Limit Speed
0.75 Mach (0.75 Mach)

Powerplant

Manufacturer
Pratt & Whitney Canada
Model
PW545C
Thrust
4,119 lb (18.32 kN)
